Banded ridge regression¶

This tutorial builds on the previous encoding model tutorial to map multiple feature spaces onto brain activity during natural language comprehension. We will use two language models in one joint model: speech embeddings from Whisper’s encoder and language embeddings from GPT2-XL. The Himalaya package (Dupré La Tour et al., 2022) provides code to run and evaluate these joint encoding models (example tutorial).

[ ]:

# only run this cell in colab
!pip install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu124
!pip install mne mne_bids himalaya scikit-learn pandas matplotlib nilearn

[1]:

import mne
import h5py
import torch
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

from nilearn.plotting import plot_markers
from mne_bids import BIDSPath

from himalaya.backend import set_backend, get_backend
from himalaya.kernel_ridge import Kernelizer, ColumnKernelizer, MultipleKernelRidgeCV
from himalaya.scoring import correlation_score_split

from sklearn.model_selection import KFold
from sklearn.pipeline import make_pipeline
from sklearn.preprocessing import StandardScaler

from sklearn import set_config
set_config(display='diagram')

Use a GPU for fitting an encoding model, if available.

[2]:

if torch.cuda.is_available():
    set_backend("torch_cuda")
    print("Using cuda!")

Using cuda!

Load GPT-2 embeddings¶

Similar to previous tutorials, we will load the contextual word embeddings from GPT-2.

[3]:

bids_root = ""  # if using a local dataset, set this variable accordingly

# Download the transcript, if required
embedding_path = f"{bids_root}stimuli/gpt2-xl/features.hdf5"
if not len(bids_root):
    !wget -nc https://s3.amazonaws.com/openneuro.org/ds005574/$embedding_path
    embedding_path = "features.hdf5"

print(f"Using embedding file path: {embedding_path}")

Using embedding file path: ../../monkey/stimuli/gpt2-xl/features.hdf5

[4]:

modelname, layer = 'gpt2-xl', 24
with h5py.File(embedding_path, "r") as f:
    contextual_embeddings = f[f"layer-{layer}"][...]
print(f"LLM embedding matrix has shape: {contextual_embeddings.shape}")

LLM embedding matrix has shape: (5491, 1600)

[5]:

# Download the transcript, if required
transcript_path = f"{bids_root}stimuli/gpt2-xl/transcript.tsv"
if not len(bids_root):
    !wget -nc https://s3.amazonaws.com/openneuro.org/ds005574/$transcript_path
    transcript_path = "transcript.tsv"

# Load transcript
df_contextual = pd.read_csv(transcript_path, sep="\t", index_col=0)
if "rank" in df_contextual.columns:
    model_acc = (df_contextual["rank"] == 0).mean()
    print(f"Model accuracy: {model_acc*100:.3f}%")

df_contextual.head()

Model accuracy: 30.942%

[5]:

	word_idx	word	start	end	hftoken	token_id	rank	true_prob	top_pred	entropy
0	0	Act	3.710	3.790	ĠAct	2191	1644	0.000012	0	2.402717
1	1	one,	3.990	4.190	Ġone	530	92	0.000342	352	3.732053
2	1	one,	3.990	4.190	,	11	3	0.059520	25	4.259335
3	2	monkey	4.651	4.931	Ġmonkey	21657	4022	0.000018	3715	6.621269
4	3	in	4.951	5.011	Ġin	287	15	0.004237	0	4.444838

[6]:

aligned_gpt_embeddings = []
for _, group in df_contextual.groupby("word_idx"): # group by word index
    indices = group.index.to_numpy()
    average_emb = contextual_embeddings[indices].mean(0) # average features
    aligned_gpt_embeddings.append(average_emb)
aligned_gpt_embeddings = np.stack(aligned_gpt_embeddings)
print(f"LLM embeddings matrix has shape: {aligned_gpt_embeddings.shape}")

LLM embeddings matrix has shape: (5136, 1600)

[7]:

df_word_gpt = df_contextual.groupby("word_idx").agg(dict(word="first", start="first", end="last"))
df_word_gpt.head()

[7]:

	word	start	end
word_idx
0	Act	3.710	3.790
1	one,	3.990	4.190
2	monkey	4.651	4.931
3	in	4.951	5.011
4	the	5.051	5.111

Load Whisper encoder embeddings¶

We will also load speech embeddings from Whisper (medium size) from the dataset.

[8]:

# Download the transcript, if required
embedding_path = f"{bids_root}stimuli/whisper-medium/features.hdf5"
if not len(bids_root):
    !wget -nc https://s3.amazonaws.com/openneuro.org/ds005574/$embedding_path
    embedding_path = "features.hdf5"

print(f"Using embedding file path: {embedding_path}")

Using embedding file path: ../../monkey/stimuli/whisper-medium/features.hdf5

[9]:

with h5py.File(embedding_path, "r") as f:
    whisper_embeddings = f["vectors"][...]
print(f"LLM embedding matrix has shape: {whisper_embeddings.shape}")

LLM embedding matrix has shape: (5134, 2048)

[10]:

# Download the transcript, if required
transcript_path = f"{bids_root}stimuli/whisper-medium/transcript.tsv"
if not len(bids_root):
    !wget -nc https://s3.amazonaws.com/openneuro.org/ds005574/$transcript_path
    transcript_path = "transcript.tsv"

# Load transcript
df_whisper = pd.read_csv(transcript_path, sep="\t", index_col=0)
df_whisper.head()

[10]:

	word_idx	word	start	end
0	0	Act	3.710	3.790
1	1	one,	3.990	4.190
2	2	monkey	4.651	4.931
3	3	in	4.951	5.011
4	4	the	5.051	5.111

[11]:

aligned_whisper_embeddings = []
for _, group in df_whisper.groupby("word_idx"): # group by word index
    indices = group.index.to_numpy()
    average_emb = whisper_embeddings[indices].mean(0) # average features
    aligned_whisper_embeddings.append(average_emb)
aligned_whisper_embeddings = np.stack(aligned_whisper_embeddings)
print(f"LLM embeddings matrix has shape: {aligned_whisper_embeddings.shape}")

LLM embeddings matrix has shape: (5134, 2048)

[12]:

df_word_whisper = df_whisper.groupby("word_idx").agg(dict(word="first", start="first", end="last"))
df_word_whisper.head()

[12]:

	word	start	end
word_idx
0	Act	3.710	3.790
1	one,	3.990	4.190
2	monkey	4.651	4.931
3	in	4.951	5.011
4	the	5.051	5.111

Because we are using two different kinds of language models, they may have different tokenizers and thus their embeddings may not be aligned. We’ll aligns their transcripts together here.

[13]:

df_merged = pd.merge(df_word_gpt, df_word_whisper, left_index=True, right_index=True)
df_merged

[13]:

	word_x	start_x	end_x	word_y	start_y	end_y
word_idx
0	Act	3.710	3.790	Act	3.710	3.790
1	one,	3.990	4.190	one,	3.990	4.190
2	monkey	4.651	4.931	monkey	4.651	4.931
3	in	4.951	5.011	in	4.951	5.011
4	the	5.051	5.111	the	5.051	5.111
...	...	...	...	...	...	...
5131	go	1798.546	1798.646	go	1798.546	1798.646
5132	to	1798.666	1798.746	to	1798.666	1798.746
5133	court	1798.786	1799.006	court	1798.786	1799.006
5134	over	1799.046	1799.226	over	1799.046	1799.226
5135	it.	1799.327	1799.367	it.	1799.327	1799.367

5134 rows × 6 columns

Loading brain data¶

Next, we will load the preprocessed high-gamma ECoG data using MNE. Here, we will demonstrate loading data from our third subject.

[14]:

file_path = BIDSPath(root=f"{bids_root}derivatives/ecogprep",
                    subject="03", task="podcast", datatype="ieeg", description="highgamma",
                    suffix="ieeg", extension=".fif")
print(f"File path within the dataset: {file_path}")

# You only need to run this if using Colab (i.e. if you did not set bids_root to a local directory)
if not len(bids_root):
    !wget -nc https://s3.amazonaws.com/openneuro.org/ds005574/$file_path
    file_path = file_path.basename

raw = mne.io.read_raw_fif(file_path, verbose=False)
picks = mne.pick_channels_regexp(raw.ch_names, "LG[AB]*")
raw = raw.pick(picks)
raw

File path within the dataset: ../../monkey/derivatives/ecogprep/sub-03/ieeg/sub-03_task-podcast_desc-highgamma_ieeg.fif

[14]:

	General
	Filename(s)	sub-03_task-podcast_desc-highgamma_ieeg.fif
	MNE object type	Raw
	Measurement date	2019-03-11 at 10:54:21 UTC
	Participant	sub-03
	Experimenter	Unknown
	Acquisition
	Duration	00:29:60 (HH:MM:SS)
	Sampling frequency	512.00 Hz
	Time points	921,600
	Channels
	ECoG
	Head & sensor digitization	238 points
	Filters
	Highpass	70.00 Hz
	Lowpass	200.00 Hz

We will map the start information (in seconds) of each word in the dataframe onto the brain signal data by multiplying by the sampling rate. Here the first column of events mark the start of each word on the brain signal data.

[15]:

events = np.zeros((len(df_merged), 3), dtype=int)
events[:, 0] = (df_merged.start_x * raw.info['sfreq']).astype(int)
events.shape

[15]:

(5134, 3)

Then we’ll take advantage of MNE’s tools for creating epochs around stimulus events, which here are the starts (onsets) of each word, to visualize brain signal that respond to word onsets. Here, we take a fixed-width window ranging from -2 seconds to +2 seconds relative to word onset. Since the sampling rate is 512 Hz (512 samples per second), we have 2049 lags total. The ECoG data is a numpy array with the shape of (number of words * number of ECoG electrodes * number of lags).

[16]:

epochs = mne.Epochs(
    raw,
    events,
    tmin=-2.0,
    tmax=2.0,
    baseline=None,
    proj=False,
    event_id=None,
    preload=True,
    event_repeated="merge",
)
print(f"Epochs object has a shape of: {epochs._data.shape}")

Not setting metadata
5134 matching events found
No baseline correction applied
Loading data for 5134 events and 2049 original time points ...

/tmp/ipykernel_3099603/3482921024.py:1: RuntimeWarning: The events passed to the Epochs constructor are not chronologically ordered.
  epochs = mne.Epochs(

6 bad epochs dropped
Epochs object has a shape of: (5128, 127, 2049)

Next, we’ll downsample the temporal resolution to 32 Hz, which reduces the number of lags to 32 * 4 = 128.

Note

This code block may take ~3 minutes to run.

[17]:

epochs = epochs.resample(sfreq=32, npad='auto', method='fft', window='hamming')
print(f"Epochs object has a shape of: {epochs._data.shape}")

Epochs object has a shape of: (5128, 127, 128)

Setting up feature and brain data¶

Now we have both the features and the ECoG data ready. We plan to fit encoding models at each electrode and for each lag, so we’ll reshape our target matrix Y to horizontally stack both electrodes and lags along the second dimension.

[18]:

epochs_data = epochs.get_data(copy=True)
epochs_data = epochs_data.reshape(len(epochs), -1)
print(f"ECoG data matrix shape: {epochs_data.shape}")

ECoG data matrix shape: (5128, 16256)

We will also align our features with the ECoG data. At the same time, we need to construct one design matrix as predictor variables in our encoding model. We do this by horizontally stacking the embeddings together, to get one wide model:

[19]:

gpt2_embeddings = aligned_gpt_embeddings[epochs.selection]
whisper_embeddings = aligned_whisper_embeddings[epochs.selection]
input_embeddings = np.hstack((gpt2_embeddings, whisper_embeddings))

print(f"Combined model embeddings size: {input_embeddings.shape}")

Combined model embeddings size: (5128, 3648)

We will change the float precision to float32 for all data to take advantage of the GPU memory and computational speed.

[20]:

X = input_embeddings
Y = epochs_data

if "torch" in get_backend().__name__:
    X = X.astype(np.float32)
    Y = Y.astype(np.float32)

X.shape, Y.shape

[20]:

((5128, 3648), (5128, 16256))

Training encoding models¶

This code block may take a while to run. Make sure you are using a GPU if you have one (verify by running nvidia-smi). You may also consider resampling the epochs even further to use fewer lags, and/or choose specific electrodes to run to use fewer electrodes.

[25]:

epochs_shape = epochs._data.shape[1:] # number of electrodes * number of lags

def train_encoding(X, Y):

    corrs = [] # empty array to store correlation results
    kfold = KFold(2, shuffle=False) # outer 2-fold cross-validation setup
    for train_index, test_index in kfold.split(X): # loop through folds

        # Split train and test datasets
        X1_train, X1_test = X[train_index], X[test_index]
        Y_train, Y_test = Y[train_index], Y[test_index]

        # Standardize Y
        scaler = StandardScaler()
        Y_train = scaler.fit_transform(Y_train)
        Y_test = scaler.transform(Y_test)

        model.fit(X1_train, Y_train) # Fit pipeline with transforms and ridge estimator
        Y_preds = model.predict(X1_test, split=True) # Use trained model to predict on test set
        corr = correlation_score_split(Y_test, Y_preds) # Compute correlation score

        if "torch" in get_backend().__name__: # if using gpu, transform tensor back to numpy
            corr = corr.numpy(force=True)

        corrs.append(corr) # append fold correlation results to final results
    return np.stack(corrs)

# set_backend("torch") # resort to torch or numpy if cuda out of memory
corrs_embedding = train_encoding(X, Y)
corrs_embedding = corrs_embedding.reshape(2, 2, *epochs_shape)
print(f"Encoding performance correlating matrix shape: {corrs_embedding.shape}")

[........................................] 100% | 22.45 sec | 20 random sampling with cv |
[........................................] 100% | 19.45 sec | 20 random sampling with cv |
Encoding performance correlating matrix shape: (2, 2, 127, 128)

Plotting encoding performance¶

[29]:

ch2loc = {ch['ch_name']: ch['loc'][:3] for ch in raw.info['chs']}
coords = np.vstack([ch2loc[ch] for ch in raw.info['ch_names']])
coords *= 1000  # nilearn likes to plot in meters, not mm
print("Coordinate matrix shape: ", coords.shape)

Coordinate matrix shape:  (127, 3)

[38]:

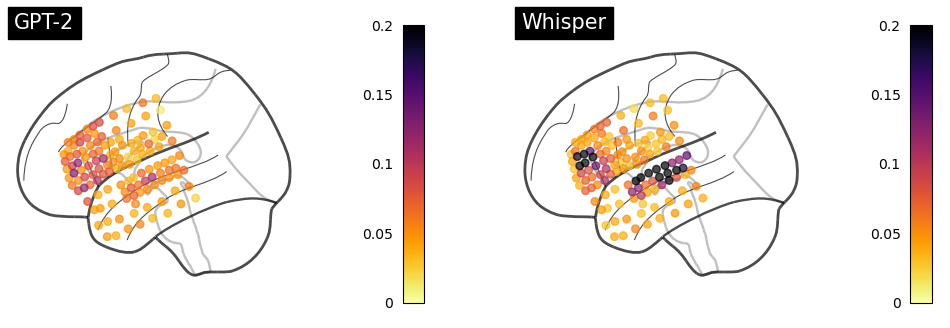

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

values = corrs_embedding[:, 0].mean(0).max(-1)
order = values.argsort()
plot_markers(values[order], coords[order],
             node_size=30, display_mode='l',
             figure=fig, axes=axes[0],
             node_vmin=0,  node_vmax=0.2,
             title="GPT-2",
             node_cmap='inferno_r', colorbar=True)


values = corrs_embedding[:, 1].mean(0).max(-1)
order = values.argsort()
plot_markers(values[order], coords[order],
             node_size=30, display_mode='l',
             figure=fig, axes=axes[1],
             node_vmin=0,  node_vmax=0.2,
             title="Whisper",
             node_cmap='inferno_r', colorbar=True)

fig.show()

../_images/notebooks_06-banded-ridge_48_0.png

Banded ridge regression¶

Load GPT-2 embeddings¶

Load Whisper encoder embeddings¶

Loading brain data¶

Setting up feature and brain data¶

Building the encoding model¶

Training encoding models¶

Plotting encoding performance¶

Navigation

Related Topics
